3D metrology is a measurement discipline that uses advanced technologies, such as laser scanners, measuring arms, and coordinate measuring machines (CMMs), to accurately capture the dimensions and geometry of objects in space. It is essential in the industrial, aerospace, and automotive sectors for quality control, part inspection, reverse engineering, and 3D modeling.

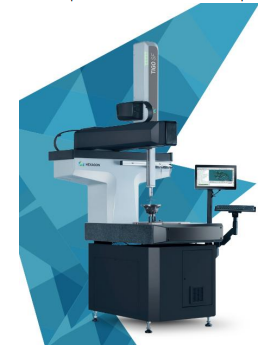

TIGO
TIGO SF is an innovative coordinate measuring machine (CMM) designed for the shop floor. This compact, robust, and ergonomic CMM makes it easy to integrate quality assurance where it plays a critical role: the production floor. With its intuitive operation, the TIGO SF opens the world of metrology to new users while offering the flexibility and extensive measurement functionality required by experienced technicians.
Combining its compact size with a highly accessible measuring volume, the TIGO SF is the perfect tool for performing near-production measurements and integrating into manufacturing cells, even in the most confined spaces.
A sophisticated yet simple alternative to manual measuring tools, the TIGO SF’s open design, along with its specially tailored accessories and options, makes it a component of an automated production cell. Designed for harsh environments, this airless CMM is fully protected against the effects of dust, dirt, vibration, and humidity in workshop environments.

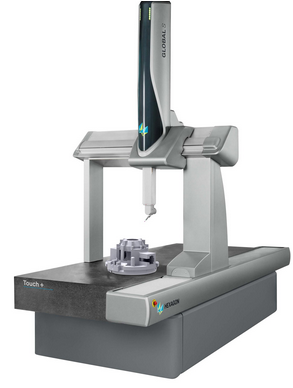

GLOBAL Touch+
Utilizing a highly versatile and precise 6-way touch-triggered probe with a motorized indexing measuring head to flexibly position the sensor during measurement, the GLOBAL Touch+ model is designed to provide exceptional tactile measuring performance on prismatic parts.
L’accès optimal aux caractéristiques et les changements de stylet réduits sont garantis, même pour les géométries de pièces 3D les plus complexes. De plus, un rack changeur de modules multiports permet un changement rapide et répétable de modules de capteur avec différentes forces de déclenchement et configurations de stylet sans recalibrage, ce qui contribue à rationaliser les cycles de mesure.

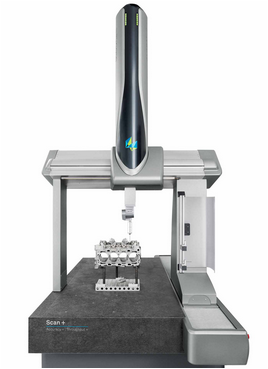

GLOBAL Scan+
GLOBAL Scan+ extends the capabilities of CMMs by integrating tactile scanning, Continuous Contact Scanning, thus offering a fast and precise solution for the acquisition of a large number of surface points. This technology allows shape and profile measurements to be carried out with high precision, essential for the inspection of functional parts.
By combining touch scanning with an automatic measuring head, GLOBAL Scan+ ensures optimal flexibility. The probe can be oriented at different angles, facilitating access to complex parts. In addition, its integrated stylus changer rack speeds up the inspection process by allowing rapid stylus changes within a measurement program, without restricting the available measurement volume.

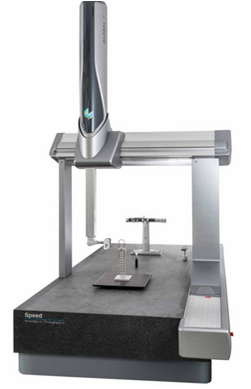

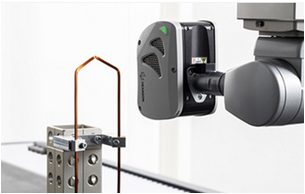

GLOBAL Speed
The GLOBAL Speed comes standard with Hexagon’s state-of-the-art laser scanning sensor, which combines speed, precision and flexibility for efficient, contactless capture of point clouds on free-form surfaces.
Designed for a wide range of applications, from complex housings to turbine blades, it allows entire surfaces to be measured with high efficiency, thanks to a laser scanner capable of reading up to 600,000 points per second. This ultra-precise data can then be compared to nominal CAD models or used for reverse engineering.
Une tête de mesure orientable assure un alignement optimal du capteur sur la surface de la pièce, tandis qu’un changeur de capteur automatique permet de basculer facilement entre le scanner laser et d’autres capteurs optiques ou tactiles, garantissant une flexibilité maximale tout au long du cycle de mesure.

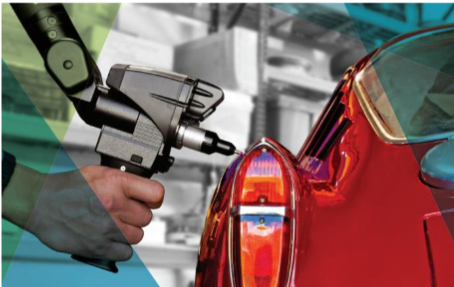

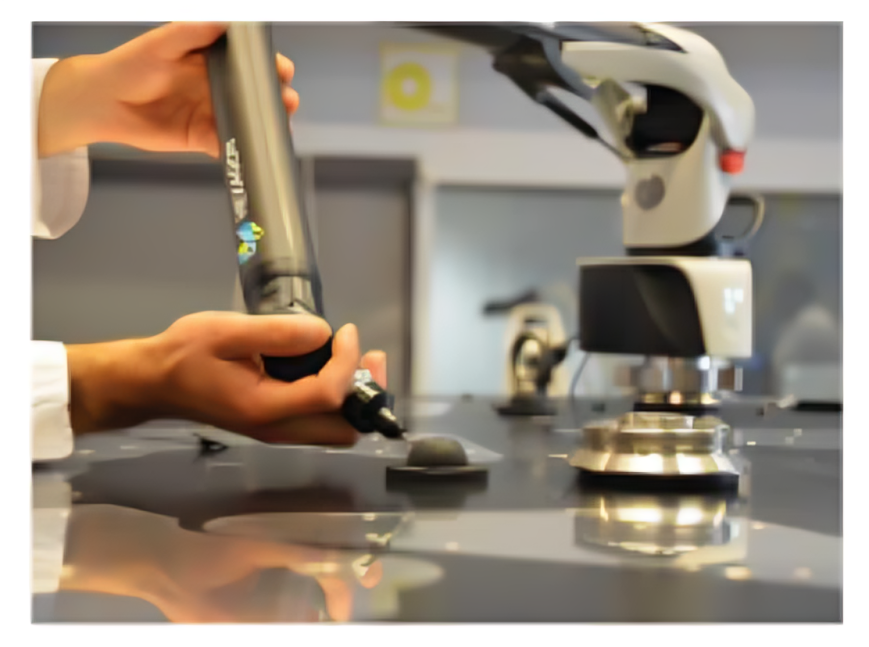

TheAbsolute Arm Compact is a portable probing solution combining precision, reliability and ergonomics. Designed for demanding industrial environments, it offers high metrological performance in a compact format, ideal for tight spaces and applications requiring high mobility.

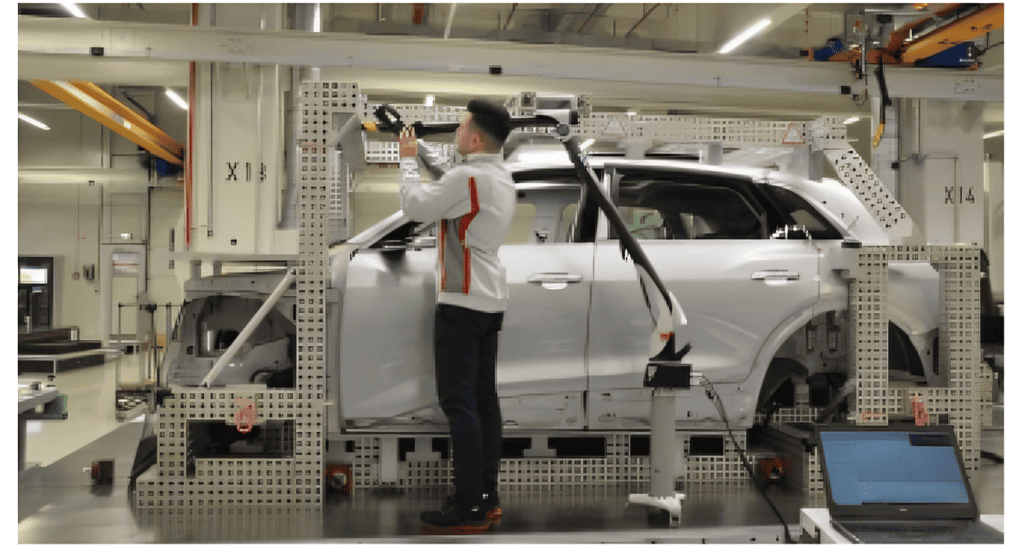

The Absolute Arm 7 Axis is a portable measuring arm designed to provide maximum precision and flexibility in 3D inspection and scanning. It represents the ideal solution for demanding industrial environments requiring fast, reliable and ergonomic measurementsAxes
Thanks to its exceptional handling and its haptic feedback system, the Absolute Arm 7 Axes is particularly suited to advanced 3D scanning and precise quality control tasks.

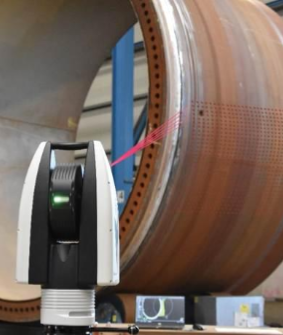

Hexagon offers several 3D trackers for precision metrology. These systems are designed to capture with great accuracy the position and orientation of objects in space.
A range of high-precision laser trackers for measuring large parts and carrying out advanced quality checks. They offer:

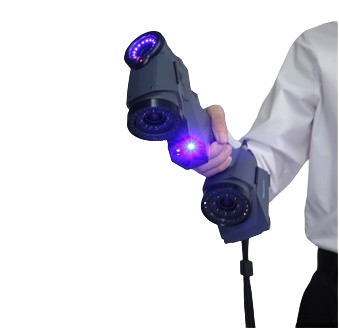

Hexagon Metrology’s handheld 3D scanners offer portable and precise scanning solutions suitable for demanding industrial environments. Designed to capture data with high fidelity, they are ideal for inspection, reverse engineering, and quality control.
Benefits of integrated photogrammetry:
✅ Increased accuracy – Reduces errors and improves measurement accuracy.
✅ Large part scanning – Enables the capture of large objects with metrological accuracy.
✅ Automatic scan alignment – Simplifies data processing and prevents assembly errors.
✅ Robust and reliable – Ideal for demanding industrial environments.

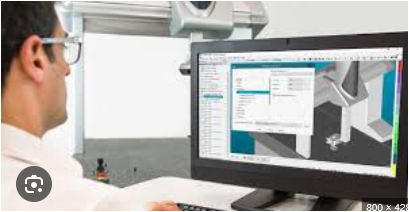

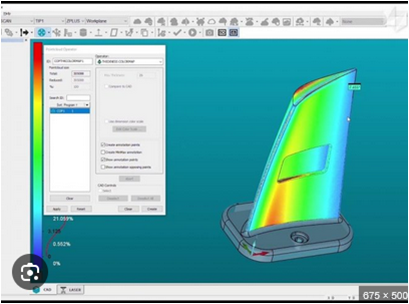

PC-DMIS is Hexagon Metrology’s flagship metrology software, designed to drive a variety of measurement equipment, from CMMs (coordinate measuring machines) to portable measuring arms and 3D scanners. It enables flexible programming, advanced data analysis, and seamless integration with manufacturing processes.
Key features of PC-DMIS:

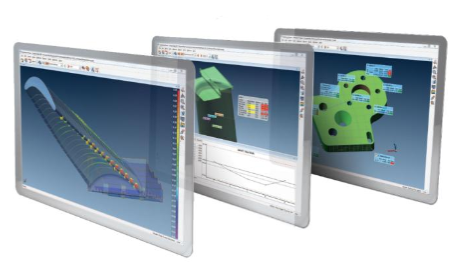

The PolyWorks software suite is ahead of the competition because it maximizes productivity, quality, and profitability when 3D measurement technologies are integrated into an industrial manufacturing process. It offers 3D metrology solutions that encompass the complete product development cycle, from the design and prototyping of parts and tools to the final inspection of assembled products. As a universal platform, it interfaces with leading brands and technologies of touch probes and non-contact 3D scanners through plug-ins, and also supports a wide range of point cloud and polygon model file formats. Finally, PolyWorks offers the most flexible and customizable software solution in the 3D metrology market. Using interface customization tools and a powerful, user-friendly macro programming language, PolyWorks users can successfully develop and deploy automated inspection processes and guided, interactive workflows that improve shop floor measurement efficiency.
We offer preventive maintenance services for your metrology equipment to ensure its continued performance and avoid costly breakdowns. By performing regular inspections and scheduled repairs, we guarantee the accuracy and reliability of your measuring instruments throughout their lifecycle.

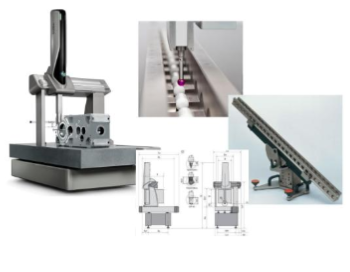

We offer calibration and calibration services to ensure the accuracy and reliability of your measurement equipment, according to the standard ISO-10360
